Display runtime

The waddle_display app is the TV dashboard: it rotates screens (slides), shows a bottom ticker marquee, renders scheduled overlays, and surfaces alerts from operators or adoption flows.

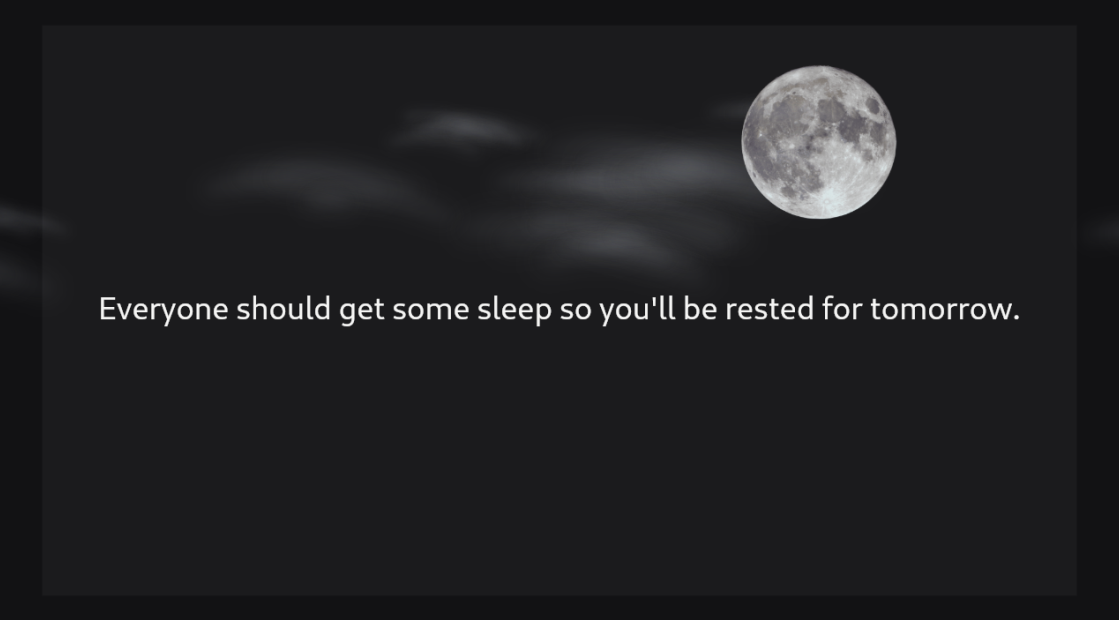

Night-themed curator slide on a TV

Screens (slides)

Each screen row in the database defines:

  • screen_type — built-in renderer (weather, news, photos, clocks, task board, etc.)
  • config_json — layout and content bindings
  • Scheduling — dwell time, frequency weight, optional date windows
  • require_news_photo (news-family types) — when true, only RSS rows with a downloaded image are used for that slide; curator may fall back to a newspaper icon when placement rules require a row without a photo

The ScreenRotator advances through the curated program. Slides preload media to reduce flicker between transitions.

Task board (task_board)

Shows Trello (or future task) columns for a boardKey matching the integration’s boardIds. Optional maxTasksPerColumn (default 12) and showCompleted (default false).

See the screen types catalog for all screen_type values.

Ticker

The bottom marquee shows curated lines (time, weather, news headlines, quotes, stocks, static text, plugin content). Ticker text is held in memory; operators read the current snapshot via GET /v1/ticker/items.

Tape dateOrder and timeFormatPreset override display defaults (controller_date_order, controller_time_format) when set. Weather temperatures follow display.weather.temperature_unit (c or f; collectors store °C).

Configure ticker tapes in the controller or via GET/POST/PATCH /v1/ticker/tapes. See Ticker reference.

Overlays

Overlays are full-screen or edge effects scheduled by calendar rules (birthdays, holidays, alarms). Examples: confetti, shape rain, matrix rain, photo slideshow, QR codes.

Operators manage rows via GET/POST/PATCH/DELETE /v1/display/overlays. Global kill-switch: config_key_values key display.overlay.enabled = false.

See Overlay types.

Alerts

REST POST /v1/alerts creates operator messages (optional QR payload). Adoption challenges also appear as security alerts on the display. Alerts respect priority and expiry.

Window and kiosk behavior

On Linux release builds, startup window policy can maximize or run borderless depending on configuration. Pair with disable screen blanking on Pi (xset, DPMS, or Wayland equivalents).

Data collection

A background DataCollectionEngine runs integrations sequentially (unless SaaS feed mode is enabled). Each cycle fetches enabled providers and writes into the database + blob store. The curator refreshes after each cycle (and on configuration changes).

Live preview

When enabled (WADDLE_DISPLAY_LIVE_PREVIEW_ENABLED, default on), operators with navigation.control can:

  1. GET /v1/display/live-preview — status (configured, enabled, fps, width, quality)
  2. POST /v1/display/live-preview/session — short-lived ticket
  3. GET /v1/display/live-preview/ws?ticket=… with Bearer API key — binary JPEG frames (4-byte length prefix + JPEG)

On Linux, gst-launch-1.0 is required for window capture. The controller Remote page proxies the WebSocket through the BFF and supports Save frame and a /remote/view pop-out. See Controller guide.
